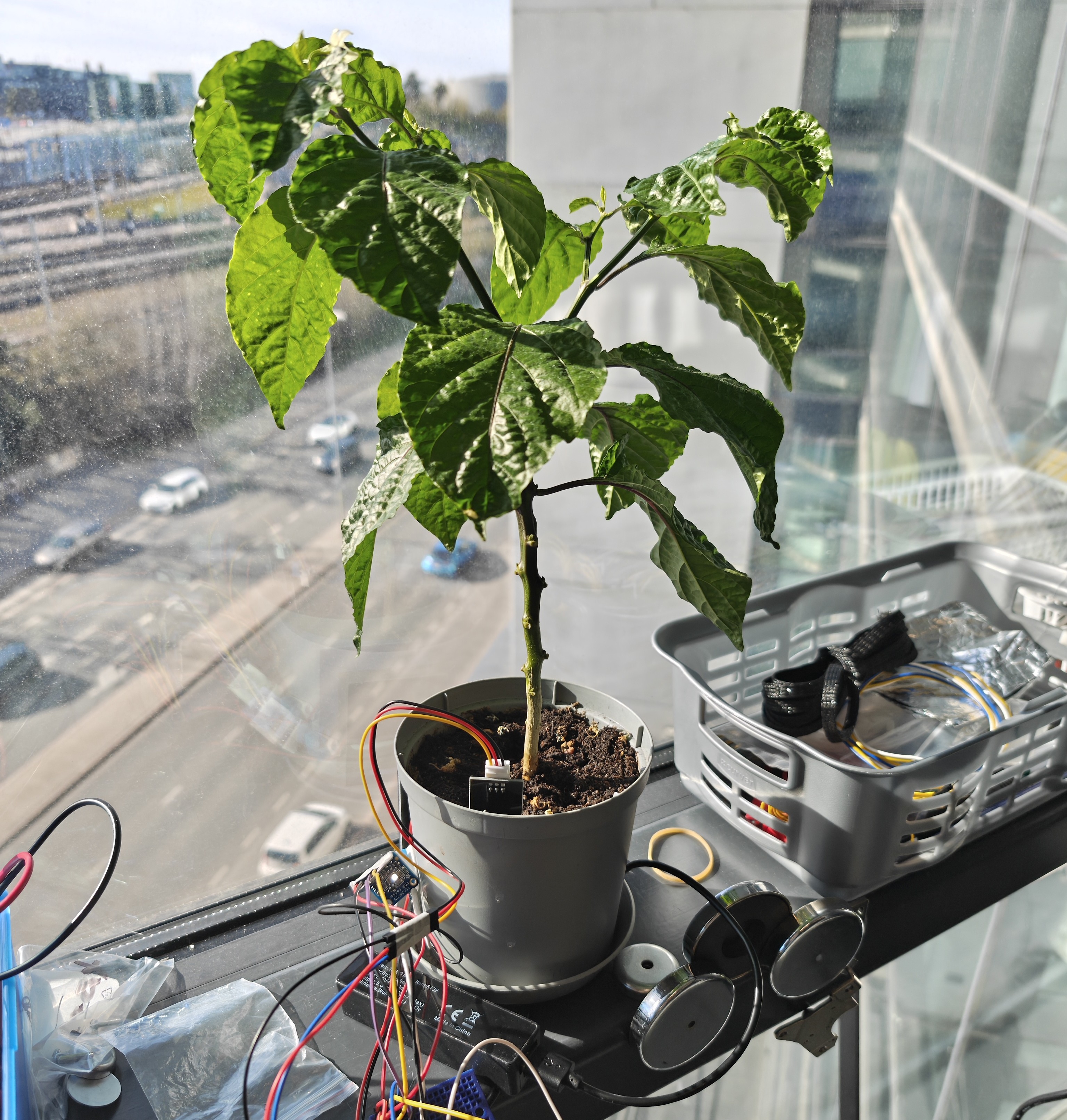

The RootNet-SmartPot is an ESP32-based modular sensing unit designed for intelligent indoor plant monitoring. It serves as the perception layer for the RootNet ecosystem, collecting environmental data and providing immediate local feedback.
Features
- Comprehensive Sensing — Monitors soil moisture, ambient light (Lux/RGB), temperature, and humidity.

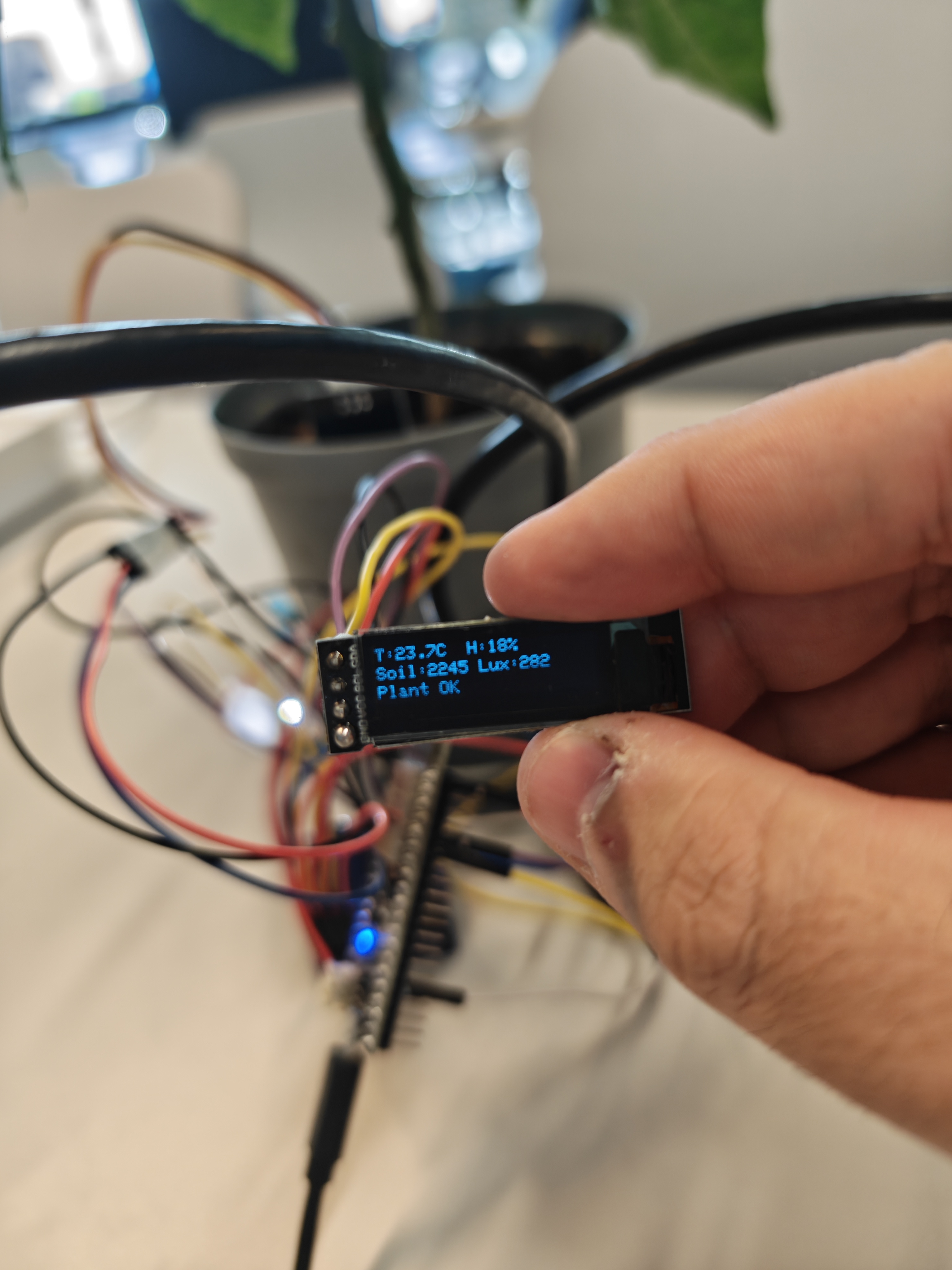

- Local Feedback — Features an SSD1306 OLED display for real-time status updates (e.g., "Needs Water", "Too Cold", "OK") without network dependency.
- Power Efficiency — Optimized for long-term battery operation using ESP32 Deep Sleep cycles.

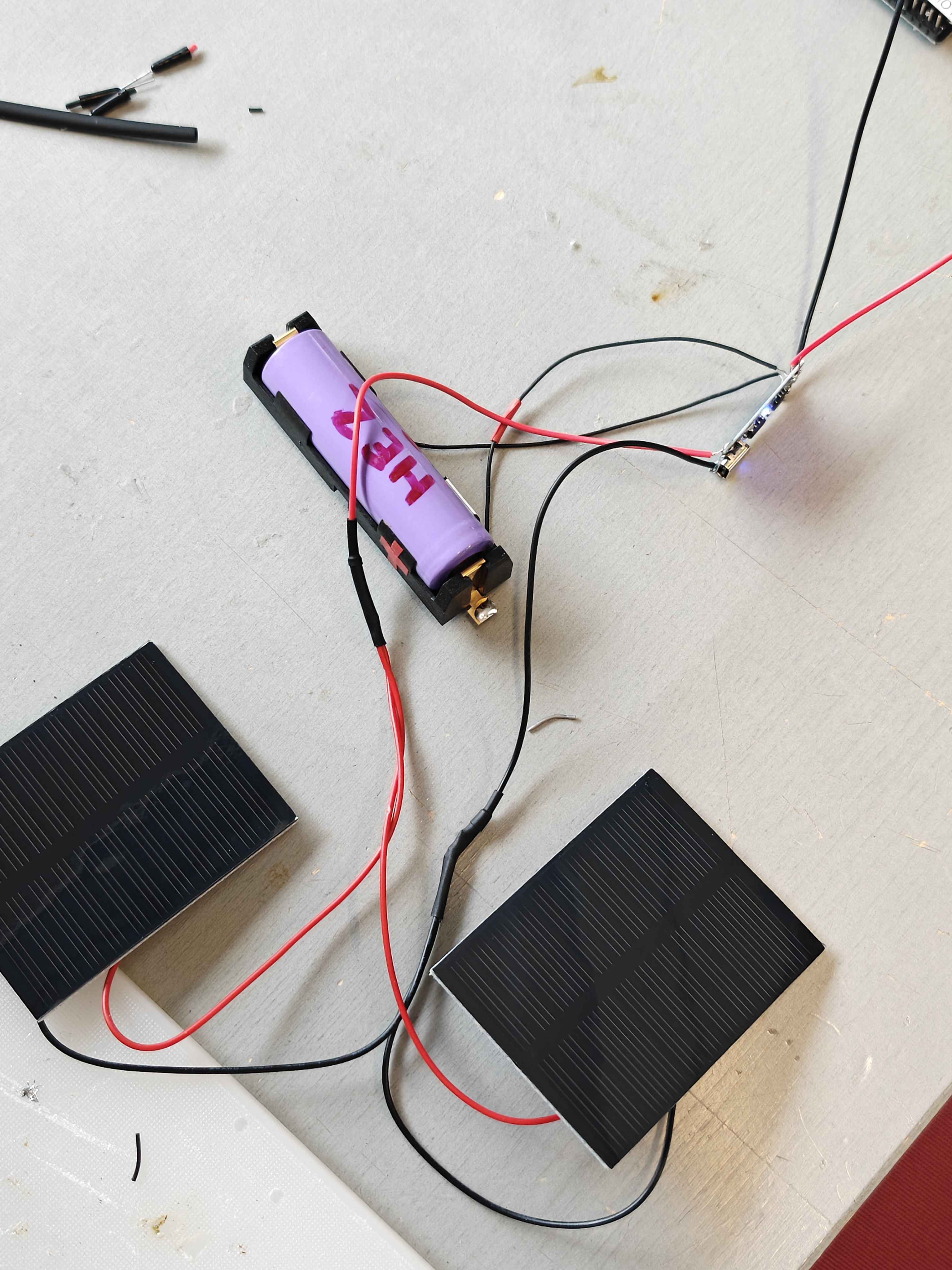

- Energy Harvesting — Supports autonomous operation via a 0.5W solar panel and an integrated LiPo charging circuit.
- Connectivity — Transmits telemetry via Wi-Fi to a central RootNet server for data logging and remote monitoring.

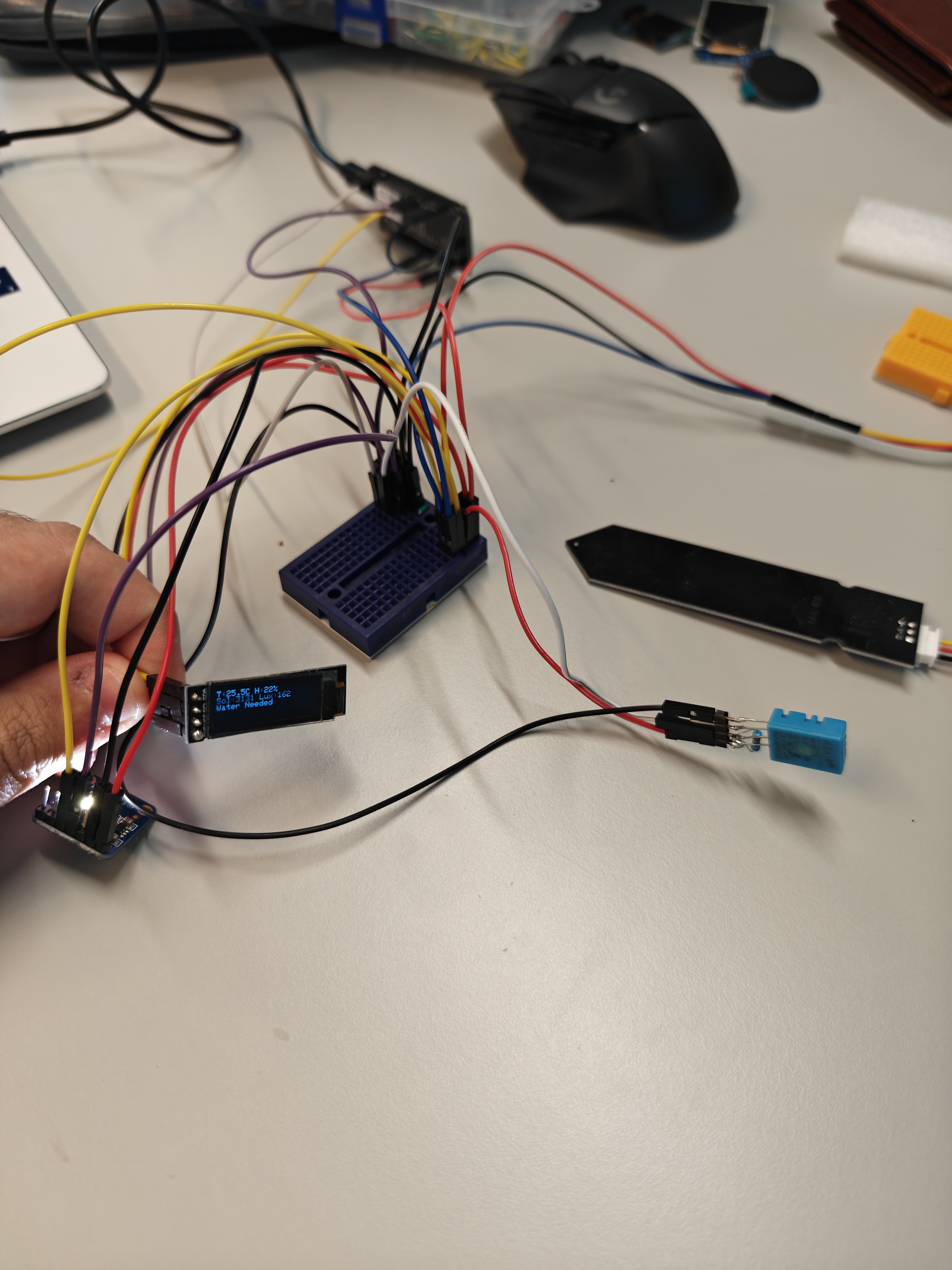

Hardware Stack
| Component | Details |
|---|---|
| Microcontroller | Lolin32 V1.0.0 (ESP32) |
| Display | SSD1306 OLED (0.91", 128x32) |

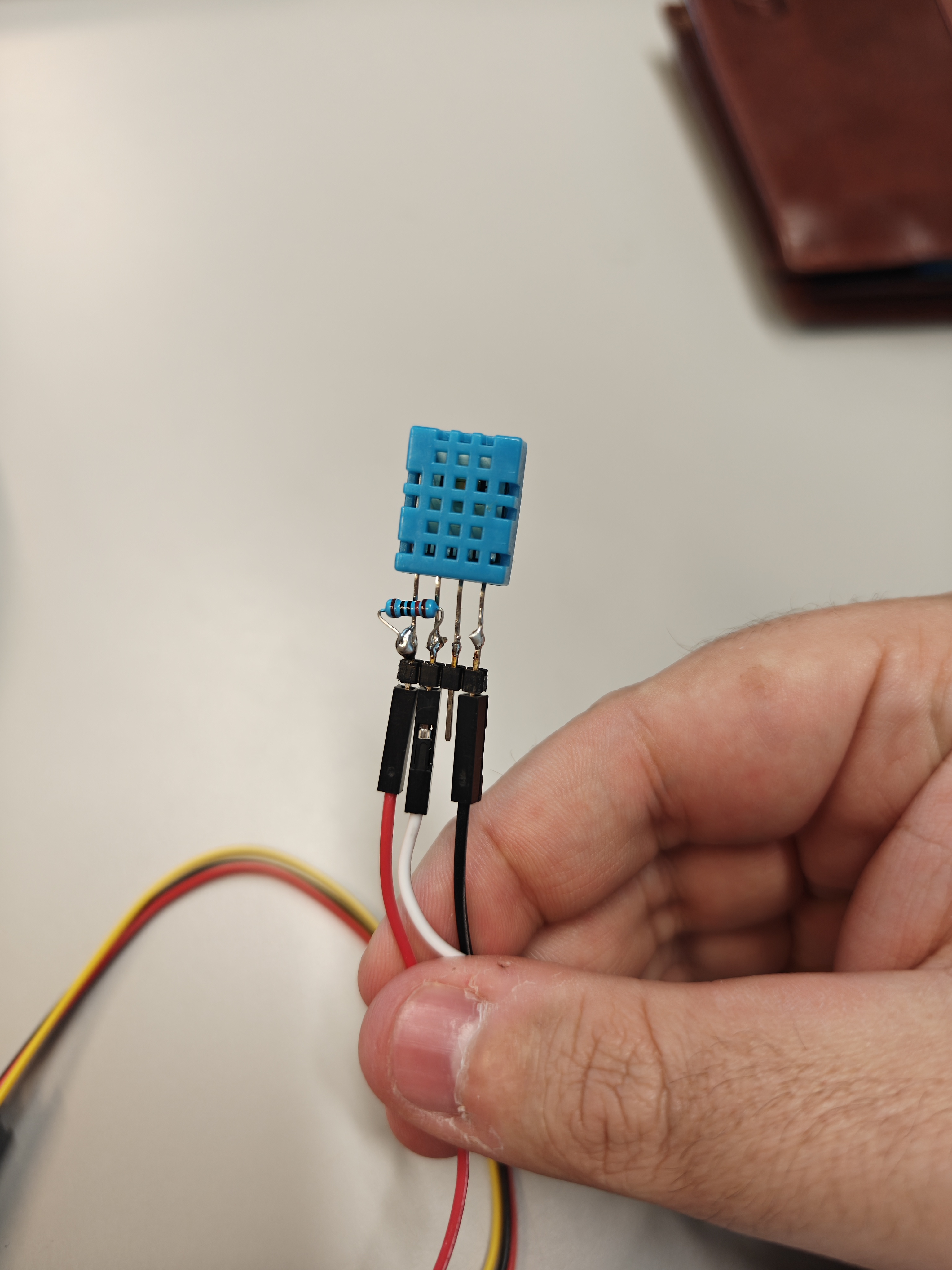

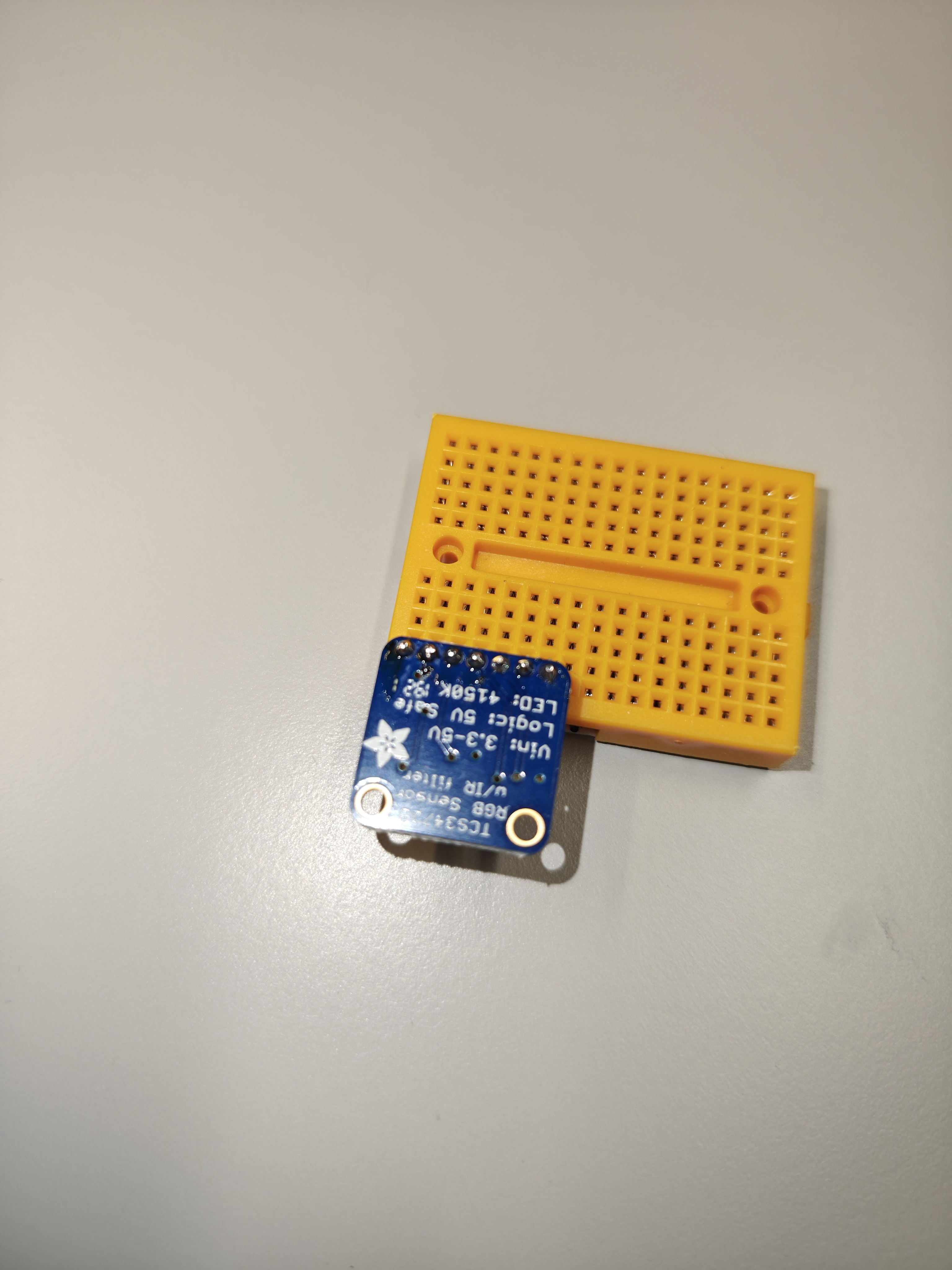

| Sensors | TCS34725 RGB Color Sensor · Capacitive Soil Moisture Sensor V2.0 · DHT11 Temperature and Humidity Sensor |
| Energy | 1000mAh LiPo Battery & 5V / 0.5W Solar Panel |
| Accessories | 10kΩ Pull-up Resistor, Breadboard, and Jumper Wires |
